Cuprotect® under plaster and insulated render systems, exterior façade



Cuprotect® and Cuprotect®Spezial

Making a fell seam in plaster

Außenputz mit Kappnaht

Außenputz mit Kappnaht

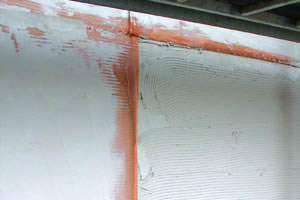

Applying plaster to the empty wall
To the left and above are the already applied sheets with upfolded edges.

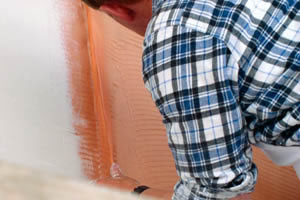

Placing
The new sheet is hanged with its folded edges into the upfolded edges of the already applied sheets.

Außenputz mit Kappnaht

Außenputz mit Kappnaht

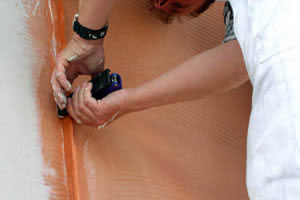

Fastening the fell seam
with equally conductive material (stainless steel- or copper staples every 5 cm). Press mesh into plaster bed, smoothen and cover completely with plaster.

(see also Connection Techniques & Earthing)

(see also Cuprotect® Tools)

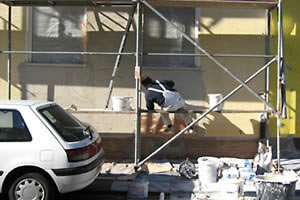

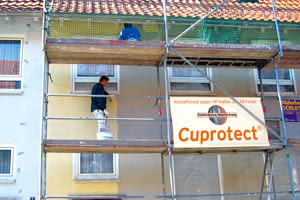

Redevelopment of a façade with Cuprotect®

Außenputz mit Kappnaht

Außenputz mit Kappnaht

Embedding Cuprotect® sheets into freshly applied plaster, subsequently covering the mesh completely with plaster.

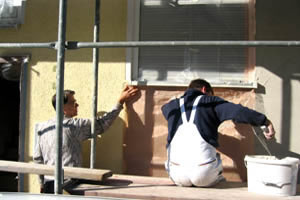

Embedding a Cuprotect® sheet (window detail)

Außenputz mit Kappnaht

Außenputz mit Kappnaht

Plastering embedded Cuprotect® mesh

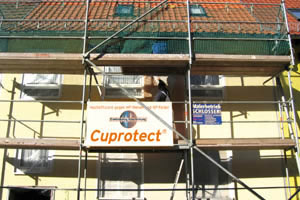

Embedded Cuprotect® mesh at the façade





Suitable plasters for embedding Cuprotect®

Baumit®

HomeProtect® Putzspachtel
Mineralischer Klebe- and Armierungsmörtel - for exteriors and interiors (download data sheet)

Baumit traders list:
Tel: 0049 8324 921218
Technical hotline:
0049 8324 921416
web: www.baumit.de
HAGA®

HAGA Cuprotect®-Kleber for exteriors
(download data sheet) (PDF 400 KB)

HAGA Natur, Switzerland
Tel: 0041 62 8974141
Web: www.haganatur.ch and www.haganatur.de


Suitable plasters for embedding Cuprotect®Spezial:

Baumit®

HomeProtect® Putzspachtel
Mineralischer Klebe- and Armierungsmörtel - for exteriors and interiors (download data sheet)

Baumit traders list:
Tel: 0049 8324 921218
Technical hotline:
0049 8324 921416
web: www.baumit.de
HAGA®

HAGA Cuprotect®-Kleber for exteriors
(download data sheet) (PDF 400 KB)

HAGA Natur, Switzerland
Tel: 0041 62 8974141
Web: www.haganatur.ch and www.haganatur.de


Safety advice:

This information shall be forwarded to all companies or workers involved in the shielding works by the company or worker installing Cuprotect®.
Liability is disclaimed on improper processing and ignorance of the assembling instructions.
This description is intended for design considerations, installation must be adjusted to the situation on site.
Legal bindings may not be deduced herefrom.

For further queries on construction details please contact Wolfgang Kessel:
Tel: 0049-4532-6679, Fax: -5934
